16Pin Female purple Vehicle Wiring Harness16Pin Female purple Vehicle Wiring Harness

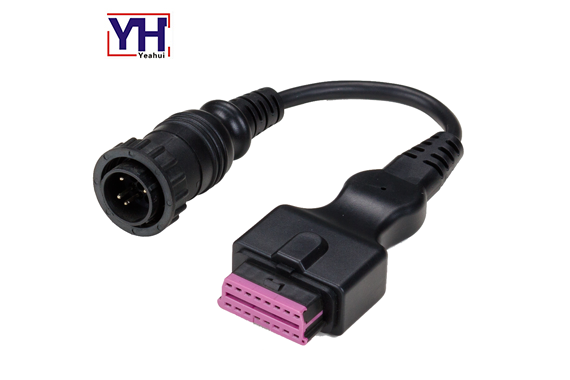

YH1008 TO YH2033-3 MB-14P Male Molding to OBDII 16Pin Female purple Vehicle Wiring Harness

Model Number: YH1008 TO YH2033-3
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month

Features

YH1008 TO YH2033-3 MB-14P Male Molding  to OBDII 16Pin Female purple Vehicle Wiring Harness. There are more than thousands vehicle cables in Yeahui. Such as MB(Benz) 38Pin M to DB15F, MB(Benz) 38Pin M to OBD-16P F, Ford 7Pin M to DB25F, TOYOTA 17Pin M to Open, Amphenol-7P M to OBDII Female vehicle wiring harness…..

The Cable Bending testing of MB 14pin plug to OBDII 16Pin female with purple core vehicle cable over 5000 times.

There are more than thousands of vehicle connectors in Yeahui. We have designed the replacement connector for Bosch, Deutsch, Sumitomo, Yazaki, Amp., Tyco, Wabco, Delphi, Ket, FCI…

Our Quality Control team ensures that nothing gets put in stock which is not of the highest quality standards.

The MB14Pin plug with wire will be used in after-sales automotive market.

Application


YH2033-3 to YH1008 MB 14pin male to OBDII 16pin female vehicle cable is widely used in Vehicle GPS tracking& navigation, Vehicle & Fleet Tracking Devices, fleet management system, flat management system, EOBD universal diagnostic tester, garage diagnostic equipment, vehicle/garage diagnostic equipment, multi diagnostic scanner, diagnostic test, play plus diagnostic kit….


products specification
Wire Specification
Cable length 200mm & customized
Cable jacket PVC
Cable pinout Customized
Cable cross-section

24AWG & customized

Cable Bending testing life NO
Terminals Applied Optical cable NO
Plug test
Electronic Parameter
Withstand Voltage 300V DC
Insulation Resistance Over 2MΩ
Rated current 1A ~ 3A
Contact Resistance MAX 1Ω (L≤3M)
Wire Rated temperature -20 ~ 105 ℃
Advantages
Yeahui

● Nice shape, hand-held ergonomic design, easy to use.

● OEM&ODM are available, also can make any kinds of special using  cables, connectors, adapters and mould developing.

● After you send us your cable length, electrical layout and cable length for us, our engineer will design your required cables for you and send the DWG for your confirm.

● Great capability to develop New Molds if that's not available in the market.

● Strict Quality Control System in Yeahui and all obd connectors and cables should be 100% inspected before dispatching.
