Molded Diagnostic Cable

Home / Molded Diagnostic Cable

Share

OBDII Male Assembly To DB9Female Cable Wiring HarnessOBDII Male Assembly To DB9Female Cable Wiring HarnessOBDII Male Assembly To DB9Female Cable Wiring Harness

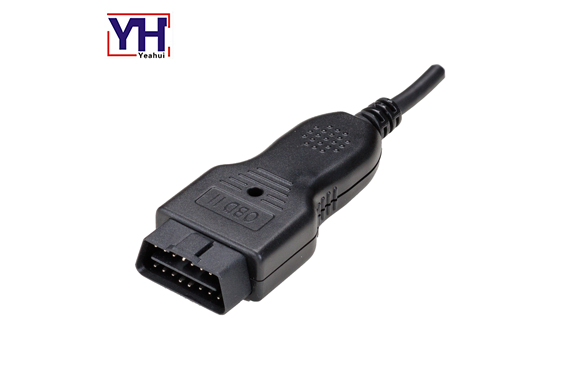

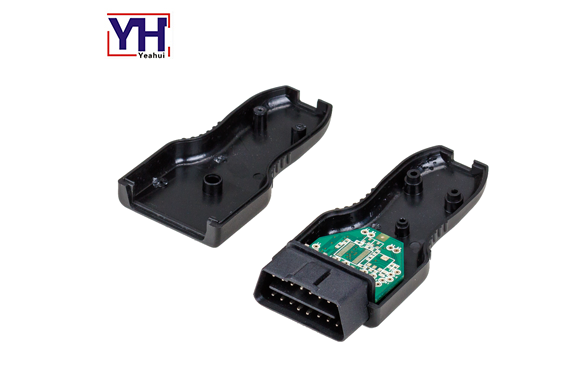

YH1005 to YHC11003 OBDII Male Assembly To DB9Female Cable Wiring Harness

Model Number: YH1005 to YHC11003
Certification: ROHS, REACH
Minimum Time: 100pcs
Delivery time: ca.20Tage
Terms of payment: T / TWestern Union
Availability: 20000 pieces per month

Features

YH1005 to YHC11003 OBDII Male Assembly To DB9Female Cable Wiring Harness. OBDII Male(Assembly) to DB9 F OBDII wiring harness will be widely used in vehicle traveling data recorder, multi diagnostic scanner, vehicle/garage diagnostic equipment, automotive/auto inspection device,BMW interface, chip tuning interface…

This soldered 24V 16pin OBD2 J1962 plug can be used to connect to your 16pin obd2 socket to obd2 diagnostic tools.

Various kinds of obd2 male plug obd2 16pin J1962 connector are available in Yeahui, you can send us your detail information, such as pinout assignment, cable length and quantity for us quotation.

YH1005 soldered 16pin male obd2 J1962 connector’s plug test over 50000 times and the cable blending testing life over 10000 times.

Any inquiry about J1962 OBDII Male(Assembly) to DB9 F OBDII wiring harness can be respond from us.

Application


YH1005 to YHC11003 J1962 OBDII Male(Assembly) to DB9 F OBDII wiring harness is used on widely fields. Such as EOBD/OBDII diagnostics information reader, automotive repairing equipment, VAG Diagnostic tool, OBD-CAN programming tool car fault-finding tool, automotive/auto inspection device, diagnostic equipment/device/test/tester, v OBD module Bluetooth, Omegas unit with OBD…..


products specification
Wire Specification
Cable length 200mm & customized
Cable jacket PVC
Cable pinout Customized
Cable cross-section AWG 26-20 available
Cable Bending testing life NO
Terminals Applied Optical cable NO
Plug test
Electronic Parameter
Withstand Voltage 300V DC
Insulation Resistance Over 2MΩ
Rated current 1A ~ 3A
Contact Resistance MAX 1Ω (L≤3M)
Wire Rated temperature -20 ~ 105 ℃
Advantages
Yeahui

● Yeahui have rich experience in J1962 OBDII Male(Assembly) to DB9 F OBDII wiring harness

● All of our J1962 OBDII Male(Assembly) to DB9 F OBDII wiring harness are produced according to the standard of TUV/ISO 9001:2008 international standard quality management.

● Solder Type with Brass Nickel plated OBD2 16Pin 24V obdii J1962 plug.

● YH1005 obd2 16pin assembled male connector’s cable jacket are PVC, PUR and customized.

● Strict Quality Control System in Yeahui and all obd connectors and cables should be 100% inspected before dispatching.
