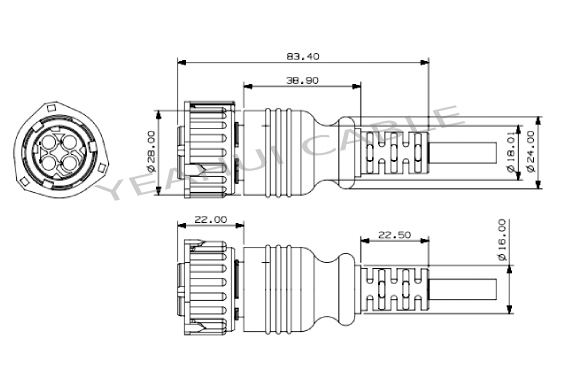

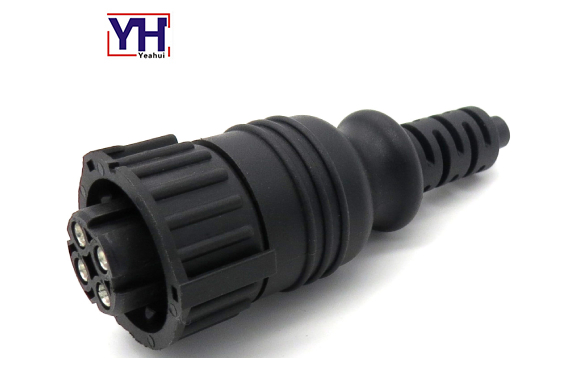

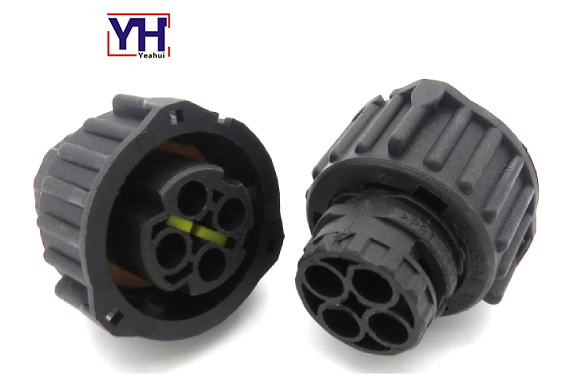

Scania 4p female connectorScania 4p female connectorScania 4p female connector

YH6016-2 Scania 4p Female Connector Socket With Truck Electronic Connecto

Model Number: YH6016-2
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month


Features

 YH6016-2 Truck diagnostic tool will be connected with 4pin SCANIA socket truck electrical connector.Our Quality Control team ensures that nothing gets put in stock which is not of the highest quality standards..

 There are many types of Truck electrical connectors in our company, such as Deutsch series connectors with wire, SCANIA series connectors with wire, CPC series connectors, MAN connectors , injector truck connectors…

 We have designed the replacement connector for Bosch, Deutsch, Sumitomo, Yazaki, Amp., Tyco, Wabco, Delphi, Ket, FCI…

 The replacement SCANIA 4P electrical socket with wire will be used in after-sales automotive connector or industrial area..

 Customizable specifications, materials and color are accepted.

We have got the certificate ISO 9001:2015

Application


YH6016-2 4pin SCANIA socket is widely used in CAN network, CAN bus interface, Heavy Truck Code Reader, Industrial cameral system,  Vehicle GPS tracking& navigation, Digital Entertainment System, EOBD universal diagnostic tester, garage diagnostic equipment, vehicle/garage diagnostic equipment, multi diagnostic scanner, diagnostic test, play plus diagnostic kit, truck diagnostic scanner, truck diagnostic equipment, truck diagnostic tools….


products specification


Detailed specification of the Connector, Wire , Electrical Parameter of YH6016-2 SCANIA 4P Female connector.


Connector Specification
Over molded color Assembly
Core color Black
Core material PA66
Terminals' material Body : Brass   , Sheel : steel
Terminals' Part No. YH 3-66104-0
Terminals Applied Optical cable 26AWG-20AWG
Plug test over 50000 times
Wire Specification
Cable length 200mm & customized
Cable jacket PVC,PUR and Customized
Cable pin out Customized
Cable cross-section 20 AWG
Cable Bending testing life
Electronic parameter
Withstand Voltage 300V DC
Insulation Resistance Over 2MΩ
Rated current 1A ~ 5A
Contact Resistance MAX 1Ω (L≤3M)
Wire Rated temperature -20 ~ 105 ℃
Advantages
Yeahui

● Yeahui is specialized in design automobile connectors, wire harness assembly, PCB assembly, plastic enclosure…There are thousands connectors and wire assembly for automobiles, home appliances, electronic diagnostic equipment, marine equipment, agriculture machine, vehicle GPS tracking & navigation, medical electronics, electric power, industrial manufacturing and military products….

● Nice shape, hand-held ergonomic design, easy to use.

● OEM & ODM are available, also can make any kinds of special using  cables, obd connectors, adapters and mould developing.

● After you send us your cable length, electrical layout and cable length for us, our engineer will design your required cables for you and send the DWG for your confirm.

● Great capability to develop New Molds if that's not available in the market.
