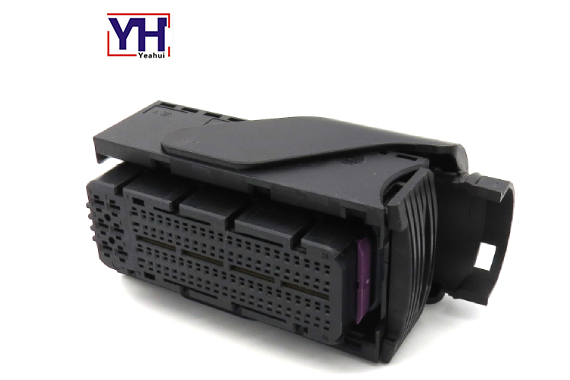

94pin Automotive ECU Connector Plug94pin Automotive ECU Connector Plug

YH3009 94pin Automotive ECU Connector Plug Vehicle Wire Harness

Model Number: YH3009
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month

Features

All the 94pin Automotive ECU Connector Plug vehicle wire harness will be design according to your cable length, electrical layout and cable specification.

Tyco 94pin Automotive electrical connector 1897634-2.

Core Part No. is 1897634-2, Cover Part No.: 284722-1, Buckle Part No: 1897646-2, Large Terminal Part No.: 7116458402, Medium Terminal Part No. is 7116449302, Small Terminal Part No.: 7112508802.

There are thousands of auto connectors and wire harness for automobiles, agriculture machine, tractor, trailer, marine equipment, post and telecommunications, medical electronics, electric power, industrial manufacturing and military products.

The original brand of our vehicle replacement connector is Tyco, Amp, Deutsch, Bosch, Delphi, Sumitomo, FCI, Lear, KET, ect.

Our quality control team ensures that nothing gets put in stock which is not of the highest quality standards.

All materials used in our connectors and cables are environmental protection and meet the international and domestic standards. We create a new generation of environmentally-friendly products.

Application

YH3009 ECU 94 poles connector is widely used in a electronic engine management, chip tuning interface, engine control unit, engine management systems, Auto key programmer, ECU Programmer, Bench Programming Tool, powertrain control module, ECU Programmer, replay control module, Gearbox control units….

products specification
Connector Specification
Over molded color Assembly
Core color Black
Core material PBT
Terminals' material Copper Alloys, Pre-Tin
Terminals' Part No. YH 7116458402, YH 7116449302 ,YH 7112508802
Terminals Applied Optical cable 24AWG-20AWG
Plug test
Electronic Parameter
Withstand Voltage 300V DC
Insulation Resistance Over 2MΩ
Rated current 1A ~ 5A
Contact Resistance MAX 1Ω (L≤3M)
Wire Rated temperature -20 ~ 105 ℃
Advantages
Yeahui

● We can offer connectors for Renault, BMW, Honda, Mercedes Benz, Ford, Audi, , BMW, Peugeot, Renault, Toyota, VOLVO, Fiat, Opel…

● We inspect all coming goods before they are put on the warehouse shelves.

● All our products are produced according to the standard of ISO 9001:2015.

● As all of our items are customized, please kindly send us your cable length, electrical layout and quantity for us quotation.

● Great capability to develop New Molds if that's not available in the market

● No. of position is 94, Type of connector is JPT with Seal. Contact Type: Socket and connector style: Receptacle. Housing material is PA66.
