Home / OBD Male Connectors

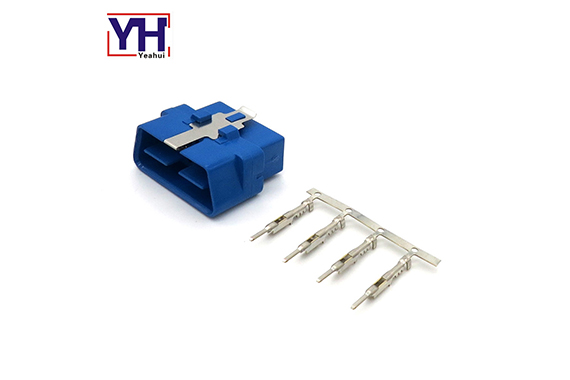

Model Number: YH1002
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month
★ Yeahui is a factory that focus on OBDII Male Connector, OBDII female connector, obdii right-angle male connector, obdii 90°connector for PCB, obdii converter.
★ YH1002 Delphi obd2 male connector is suitable for EOBD universal diagnostic tester, OBD module Bluetooth, automotive diagnostic tool and all equipment with obd2 port.
★ YH1002 Delphi OBD2 SAE J1962M connector is connected with your vehicle and Female is ideal for making an extension cable or some apparatus.
★ Many kinds of obdii connector in our factory, such as OBD-II connector with over molding, OBD-2 connector assembly, 12V obd connector, 24V obdii diagnostic connectors, J19962(obd2) plug, right-angle J1962 obdii connector.
★ The plug test of YH1002 J1962 obdii connector (24V) over 50000 times and the cable blending
★ Test life over 10000 times.
★ Using quality process technique and advanced equipment made YH1002 16 pin male connector (24V) flexibility and durability.
★ Prompt respond will be get from us when we received any inquiry on YH1002 24V obd2 connector.
GPS tracking device, telematic, fleet management, M2M, loT, electronic logging device, TravelLog. PositionGuard, fuel management, automotive insurance, driver behavior management, UBI telematic (Usage Based car-Insurance).
The connector specification, wire specification, Electronic parameter of YH1002 16 pin male connector(24V) showed below.
| Connector Specification | |
| Over molded color | Black & customized |
| Core color | Black Red, Yellow, Green, Blue |
| Core material | PBT(POCAN) |
| Terminals' material | Brass Pre-Tin |
| Terminals' Part No. | YH 6618343BSS |
| Terminals Applied Optical cable | 26AWG-18AWG |
| Plug test | over 50000 times |
| Wire Specification | |
| Cable length | 200mm & customized |
| Cable jacket | PVC,PUR and Customized |
| Cable pin out | Customized |
| Cable cross-section | AWG 26-20 available |
| Cable Bending testing life | over 10000 times |
| Electronic parameter | |
| Withstand Voltage | 300V DC |
| Insulation Resistance | Over 2MΩ |
| Rated current | 1A ~ 5A |
| Contact Resistance | MAX 1Ω (L≤3M) |
| Wire Rated temperature | -20 ~ 105 ℃ |
● We are professional on J1962 Delphi OBDII Male connector over 10 years.
● ISO9001:2008 certificated equipped with our factory.
● With strong R&D department support, we are confident to design customized J1962 obd2 plug
● PVC, PUR and customized cable jacked for YH1002 16 pin obdii diagnostic connector available
● YH1002 OBD Connector 16 pin obdii connector cable length and pin out are customized.
● YH1002 obd2 connector accord with Reach and RoHS certificate.
● The wire of YH1002 24V obdii connector compliance with UL standard.
