OBD Female Connectors

Home / OBD Female Connectors

Share

Assembly Type OBDII Female connector with Plastic Enclosure

Model Number: YH1044
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month

Features

YH1044F obd2 plastic box for OBD universal diagnostic tester and GPS Tracker.

OBD2 GPS Tracker is easily installed by plugging into the vehicle obd port.It can be hidden with an optional Y cable.

Please note this is an adapter, excluding PCB & software.

It cannot be attached directly to your laptop.

The OBD2 16 pin case OBD Enclosure is without any device or software, customer can insert PCB board.

YH1044F consists of 2 parts, one standard 16 pin purple socket; one piece plastic enclosure

Application

The J1962 female enclosure can be used for all automobile diagnostic tools.

OBDII 16 pin Male adapter is supporting CAN bus & KWP2000 vehicles.

When the OBDII shell/plastic enclosure is plugged and locked in the car’s OBD-II port, the module inside the case will always stay static to the car body, so the sensor data can reflect the movement of the car accurately.

The J1962 can be used for measuring car’s acceleration and steering G-force. The gyroscope can be used for measuring car’s orientation without GPS.

YH1044F 16pin OBD Enclosure is used on widely fields. Such as OBDII-CAN programming tools, GPS tracker, Fleet management, GPS vehicle tracking, diesel engines optimization device, multi diagnostic scanner, EOBD universal diagnostic tester, multi diagnostic scanner , diesel injector test, ECU Programmer, EOBD/OBDII diagnostics information reader, OBD module Bluetooth.

Advantages
Yeahui

● With professional R&D team supports, Yeahui is sophisticated on mold design, develop for 11 years.

● Get an unique plastic enclosure, we can provide tailor-made tooling design, with materials and size, USB or LED holes, modify PCB pillars and more tailored to your specifications.

● Materials, engineering, and manufacturing organizations meet the high standards implemented by ISO 9001:2015.

● Raw Materials are REACH and Rohs compliant.

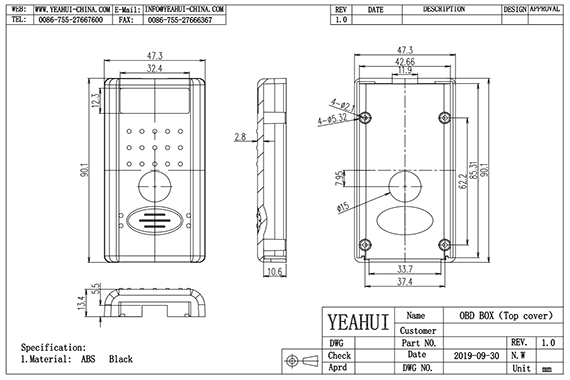

● Request for OBD II enclosure and PCB dimension, please drop us an email.

● We can also supply good quality plastic injection moulds and die mould for making all vehicle brands’ cases.

● We keep our promise to customer, about quality, before and after sale service, 100% inspection and testing before shipment.
