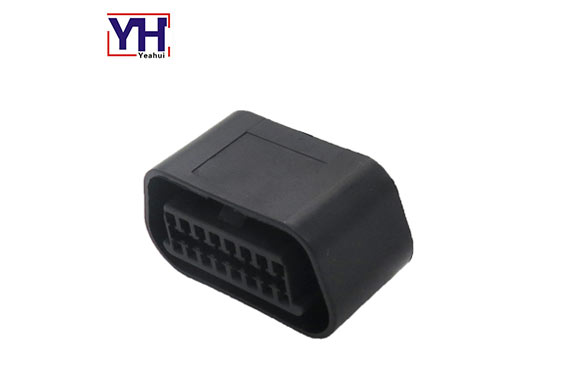

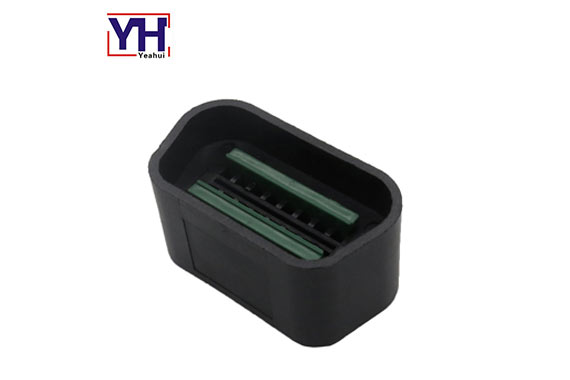

YH1041 16 pin 12v Obd2 Female Obdii Connector

Model Number: YH1041
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month

Features

YH1041 OBDII Female Connector Assembly With Terminal Position Assurance Retainer.

This OBDII Female connector usually used in FORD Car.

YH1041 is assembly type OBD2 Female connector, we have over-molded type female connector similar with this connector.

Customize specifications, materials and drawings are accepted.

We have advanced equipment and quality process technique make this obd2 female connector is superior flexibility and durability.

Contact us if you have any question about the OBD2 Female connector, we will get prompt respond about this items after any question we get from you.

Application

Many equipment will used YH1041 16Pin female connector. Such as diagnostic tool/scanner/instrument, GPS Tracking system, diagnostic (scanner) kit, multi diagnostic scanner, fault code reader, diagnostic code reader, code reading tester, break-out box, VAG Diagnostic tool, Automotive Digital Diagnostic Tools, car maintenance tools, obd meter correction bit….

products specification
Connector Specification
Over molded color Black & customized
Core color Black & Purple
Core material PA66
Terminals' material Brass  Pre-Tin
Terminals' Part No. YH 820608BSS
Terminals Applied Optical cable 26AWG-16AWG
Plug test
Electronic Parameter
Withstand Voltage 300V DC
Insulation Resistance Over 2MΩ
Rated current 1A ~ 5A
Contact Resistance MAX 1Ω (L≤3M)
Wire Rated temperature -20 ~ 105 ℃
Advantages
Yeahui

● The cables used on obd2 female connector comply with UL standard.

● The cable DWG will be sent to you according to your electronic layout, cable length and wire structure.

● Our factory specialized in obdii connector over 10years. Quality first and customer supreme are our business principle.

● We implement TUV/ISO 9001:2015 international standard quality management at production.You can get qualified obd connectors and cables from us.

● All of cables are customized in Yeahui, you can send the cable length, pinout assignment for us production.

● This obd2 female connector conform to Reach &RoHS certificated.
