m12 8 pin female connectorm12 8 pin female connector

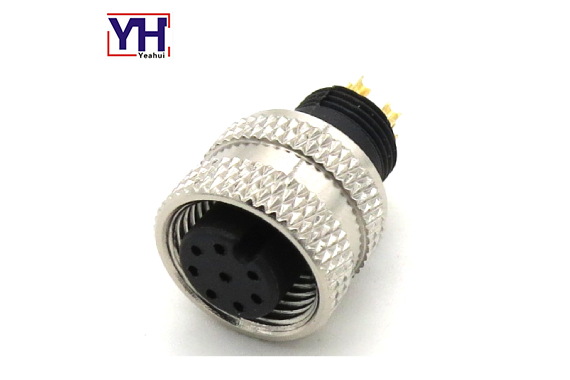

M12AF08713763SH M12 8pin Female A Coding Overmolded Waterproof Connector

Model Number: M12AF08713763SH
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month


Features

M12AF08713763SH m12 8pin female a coding overmolded waterproof connector rovided by Reliable Manufacturer with Kapton Heater Area. With experienced R&D team, we can design the most suitable products according to the requirements and detailed drawings, sketch of customers.

Locking system: screw M12*0.1

Termination: solder, molded on cable or screw clamp

Wire gauge in m㎡:0.25/0.34/0.5 etc

Wire gauge in AWG: 24/22/20 etc

IP67/IP68/IP69K in locked condition, watertight

Mechanical operation: >500 mating cycles

Temperature range: 85°-25°

Application

M12AF08713763SH M12 8Pin female connector can be used on sensor, industrial robotics, vehicle CCTV camera, LED light, Silicone Rubber Heaters, Motor Heaters, ultrasonic flow measurement, level and temperature measurement as well as special data loggers and SCADA systems, Flow Measurement, Level Measurement, Data Logging, Measurement Technology, Water and Wastewater Measurement Technology, Fleet management, insurance, street lighting, Broadband Wireless Access, camera, monitor, Industrial/Factory Automation, LED applications, marine, Trailer/Tractor Monitor System, Planter Monitoring and Control, Planter System, Agricultural electrical equipment, Railway transportation Systems, LED and Lighting system, Telecommunications and Network Systems, Marine and Ships Engineering System, Medical Equipment, High Voltage Alternating Current Systems, Measuring and Testing Systems, Package Conveyor and Logistics, Refrigeration and transportation systems, Renewable Energy, Working Set Master Module, WSMT2 Control Channel, WSMB , Seed Singulation, and Accessory Modules, WSMB Implement Output Module, Cab Control Switch Module, air cart, Air Cart Monitoring and Control , Working Set Master 2, Air Pressure/Hopper Level/Hall Eff ect Sensors, Application Rate Sensors, PLANTER MONITORS, transmission systems, basis stations, data and network servers, routers, monitors, package conveyor logistic system., airport weighing, supermarket weighing, testing monitoring system, etc.

Advantages
Yeahui

● We are an TUV/ISO 9001:2015 certified factory. All M12 connectors are UL, ethernet/IP approved.

● Compatible with IEC 61076-2-101/-104/-109.

● Raw material is Reach/RoHS compliant, phthalate free.

● M12 series circular connector is widely used in LED light, vehicle CCTV camera, various cable exit mode is available upon request, like Y Splitter /T tree

● Prompt and professional service to customer from design to demand fulfillment. We are a full turnkey solution provider.

● 100% Tested will be done before delivery.
