Model Number: YH1004-4
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month

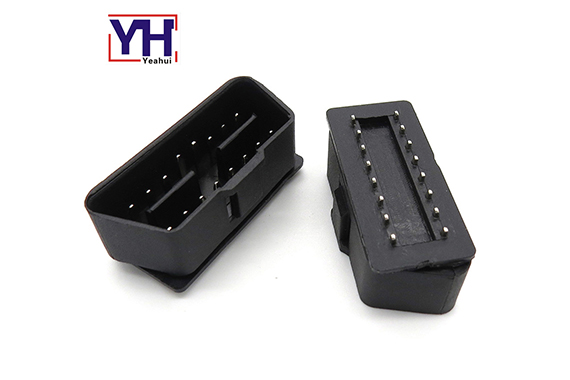

★YH1004-4, lowest profile OBDII Male connector 24V
★We expert in producing obd2 male connector, obdii female connector, J1962 converter/adapter over 11 years. Various OBDII, J1939 cable to collect data from vehicle diagnostic port for your choose. Or custom design according to your requirement
★OBDII Male connector utilized in OBD II scanner, EOBD universal diagnostic tester, automotive diagnostic tool, vehicle tracking and telematics.
★Prompt and excellent service to customer from design to demand fulfillment. A full turnkey solution provider.
★Our factory have obtained TUV TUV/ISO 9001:2015 international standard quality management. We place great emphasis on quality control.
YH1004-4, lowest profile OBDII Male connector is widely used in vehicle/garage diagnostic equipment, automotive/auto repairing equipment, GEOTAB telematic device, CalAMP jPOD automotive insurance, Continental Adds VDO RoadLog ELD, driver behavior management, lairdtech telematic device, UBI telematics (Usage Based car-Insurance), auto rental and automotive applications, trailer tracking, , Off highway vehicle,M2M devices, Immobilizer, No theft GPS, Telematic safety devices, Aircraft safety products, load cell, mill machinery, logger device, Insurance safety device for fleet management, lOT Platform, GPRS Communication, remote shutdown vehicle power supply devices, Level allignment, OBD2 Bluetooth data logger, mechnical and electronic control system, Data Acquisition Systems, V2X System(v2x-communications in drive assistance）, Automatic vehicle location(AVL) system, SAE J2534 pass-thru programming tools, re-manufacturing, trailer/Tractor Monitor System, diagnostic tool, chip tuning, Ultra-Accurate Engine Diagnostics, School bus management, Stolen vehicle recovery management, Trailer and container monitoring, Stolen vehicle recovery, vehicle tracking, lite fleet management.
| Connector Specification | |
| Over molded color | Black & customized |
| Core color | Black Red, Green, Blue |
| Core material | ABS |
| Terminals' material | Brass Nickel plated |
| Terminals' Part No. | YH OBD-01 |
| Terminals Applied Optical cable | SOLDER |
| Plug test | over 50000 times |
| Wire Specification | |
| Cable length | 220mm & customized |
| Cable jacket | PVC,PUR and Customized |
| Cable pin out | Customized |
| Cable cross-section | AWG 26-20 available |
| Cable Bending testing life | over 10000 times |
| Electronic parameter | |
| Withstand Voltage | 300V DC |
| Insulation Resistance | Over 2MΩ |
| Rated current | 1A ~ 5A |
| Contact Resistance | MAX 1Ω (L≤3M) |
| Wire Rated temperature | -20 ~ 105 ℃ |
●This connector conform to Reach &RoHS. The stable and high quality cables and connectors help us get well-recognized and trusted by European, America, Africa customer. We looking for sustainable partnership.
●Mating cycle over 10000 times, long life cycle.
●OBDII male connector molded into cable, cable length, pinout assignment are customized.
●A broad range of OBDII connector available in Yeahui, such as over molding obd2 connector 12V, over molded obdii diagnostic connectors 24V, obd2(J1962) brass golden plated PCB soldered obd2 plug/Socket, right-angle obdii male connector, obd2 male connector with soldered.
●Newly-introduced automatic stripping and cutting wire machine trim down labor cost, enhanced our competitiveness among competitors.
