Model Number: YH1037 12V
Certification: ROHS, REACH
Minimum Order: 100pcs
Delivery Time: About 20days
Payment Terms: T/TWestern Union
Supply Ability: 20000 pieces per month

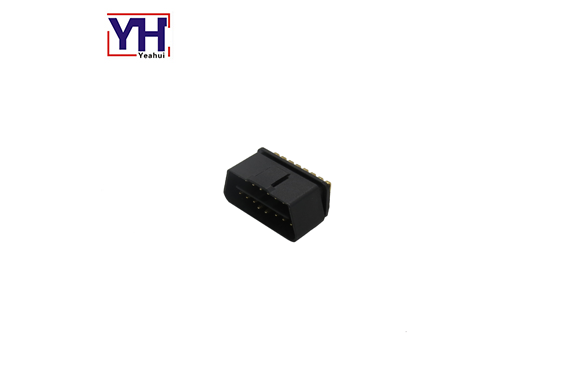

★YH1037 12V OBD-16P Male 90 ° With Pin To Notch Connector. We expert in producing obd2 male connector, obdii female connector, J1962 converter/adapter over 11 years. Various OBDII, J1939 cable to collect data from vehicle diagnostic port for your choose. Or custom design according to your requirement.
★All these obd2 cables produced according to ISO Standard.
★The materials of wires comply with UL and connector meets with Reach/ ROHS Standard.
★The Pin-Out, Cable Specification, and cable length can be customized.
★Any question for OBDII Flat cable will be prompt response.
YH1037 12V obd2 connector can be widely used. Such as Telematics Safety Devices, aircraft safety equipment, fleet management system, GPS Tracking Device,Fleet management system， GPS Tracker, M2M Device, UBI Telematics(Usage Based Car-Insurance),auto diagnostic equipment, automotive/auto inspection device, car fault-finding tool, vehicle/garage diagnostic equipment, automotive/auto diagnostic tool, auto/car diagnostic.
| Wire Specification | |
| Cable length | 200mm & customized |
| Cable jacket | PVC |
| Cable pinout | Customized |
| Cable cross-section | UL2651 16 Pin 24-28 AWG flat wire (pitch=1.27mm) |
| Cable Bending testing life | NO |
| Terminals Applied Optical cable | NO |
| Plug test | |
| Electronic Parameter | |
| Withstand Voltage | 300V DC |
| Insulation Resistance | Over 2MΩ |
| Rated current | 1A ~ 3A |
| Contact Resistance | MAX 1Ω (L≤3M) |
| Wire Rated temperature | -20 ~ 105 ℃ |
● OBD2 connectors can be as small as possible to meet with your requirement when use standard OBDII connector.
● A PCB have been designed for assembly this flat cable.
● Flat cable used on this OBDII connector will be soldered very well.
● Perfect and Secured Molding can be used to design small OBD II connector.
● All pins wires can be connected on our OBDII flat cable. But if you just connected 3 pins, 4 pins, 10 pins. We can also meet with your demand.
